is a web page module that allows you to quickly and easily
create and maintain a menu tree system in your ASP pages, featuring pop-up text,
boxes, rollover (mouseover) graphics, and more. All of this is done using the
simple TreeMenu configuration utility instead of attempting to write arcane
TreeMenu can automatically generate a full hierarchal menu tree system such
as the one at the right as well as graphical
animated menu tree systems (such as this
one), and much more - with absolutely
no manual coding!
This line retrieves the URL of the current page
and assigns it to the "CurrentURL" property of the TreeMenu
object. TreeMenu needs to know the current page URL, so it knows how to
construct the menu, showing which is the currently open branch.
This optional line sets the color used to display
the text of the page name in the menu for the currently selected page. The
default is the standard HTML color code "#FFFFFF", which
represents white. This value can also be defined in the XML configuration
TreeMenu.NavFile = Server.MapPath("/SiteMap.tmu")
This line tells TreeMenu where to find the XML-format TMU file
that contains the menu information for your web site. TreeMenu expects an
absolute location, such as "C:\Directory\SiteMap.tmu". The
"Server.MapPath" function translates a relative web address into
the absolute physical location that TreeMenu requires. In this example, it
is pointing the NavFile property to a file called "SiteMap.tmu"
which resides in the web root directory.
This line tells TreeMenu where to find the
directory containing the images it uses to draw the menu icons. It is a
relative web address, and therefore requires a forward slash and a
directory name. In this instance, it is specifying that all images will be
found in the /TreeMenu directory off of the main web root directory. This
value can also be defined in the XML format TMU configuration file.
TreeMenu.Target = "main_frame"
This optional line sets the default target for the URL,
for use in a web site that utilizes frames. In this case, you would set
the Target property to the name of the target frame. This value can be
defined in the XML format TMU configuration file, as well as modified on a per-menu item basis in the XML format TMU configuration file.
This line actually creates the menu itself.
Set TreeMenu = Nothing
This destroys the TreeMenu object after it is
finished being used.
To generate a menu from a database source is just slightly different:
There are three different lines used in this code. When any of these three
properties are set, TreeMenu will automatically attempt to retrieve its menu
information from the database the next time GenMenu is called. Specifying
the NavFile or NavString properties will cause TreeMenu to revert to the default
(non-database) method the next time GenMenu is called.

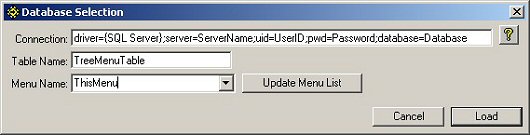

This line tells TreeMenu how to connect to the
database: Which database type, the server name, the username and password
for accessing the database, and the name of the database to access. Syntax
for non-SQL databases differs; see the portion of the documentation on
databases below for details.
TreeMenu.TableName = "Menus"
This line specifies the name of the table in the
database that contains the menu that we will be using.
TreeMenu.MenuName = "ThisMenu"
You can have more than one menu in each table. The
menus are differentiated by their names, each name being up to 20
characters in length.
Used for database functionality, specifies the ADO connection string
used to connect to the database.
Passes the full URL of the currently viewed page to TreeMenu before the
page is generated. Allows TreeMenu to determine which menu item to show as
GenMenu (Optional String FileNam)
Generates the HTML code containing the menu according to the given
parameters and the parameters in the configuration file. Returns the HTML
code as a string. Can optionally be passed the location of the
configuration file instead of using the NavFile property.
Directory containing the TreeMenu icon image files. Relative to the
directory of the page being displayed. Can be specified in the
configuration file. Specifying the value with this property overrides the
value in the configuration file.
Directory containing the images used for image-based menus. Relative to the
directory of the page being displayed. Can be specified in the configuration
file. Specifying the value with this property overrides the value in the
Used for database functionality, specifies the name of the menu contained
within the table. Maximum 20 characters.
Specifies the physical location on the disk of the server of the TMU configuration file that TreeMenu will
read its configuration and menu definitions from.
String containing a full XML document in the standard TMU format from
which TreeMenu will generate its menu. Specifying both a NavFile and
NavString will cause TreeMenu to use the NavFile property and to ignore
the NavString property.

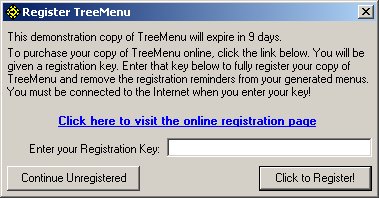

RegisterKey (String Key)
Deprecated, but included for backwards compatibility. No functionality.
The color used to display the text of the currently selected page. Specifying
a value in this property overrides values set in the TMU configuration
When true, all items in the menu will be shown, and all trees will
Turns a special debug mode on, for use when debugging problems with
Used for database functionality, specifies the name of the table containing the
TreeMenu menu information
Default target page for all links generated by TreeMenu. Specifying a
value in this property overrides values set in the TMU configuration file.

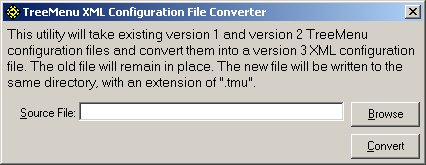

Previous versions of TreeMenu used a plain text configuration file. TreeMenu
4.0 and above use an XML format TMU configuration file which can be easily modified by any XML-aware
application. TreeMenu reads its menu information from this file, which can be
located anywhere on the server PC, or from within a FrontPage web, by
double-clicking on the TMU file. Instead of manually modifying the text-based
configuration file, TreeMenu now uses a full-featured configuration utility.

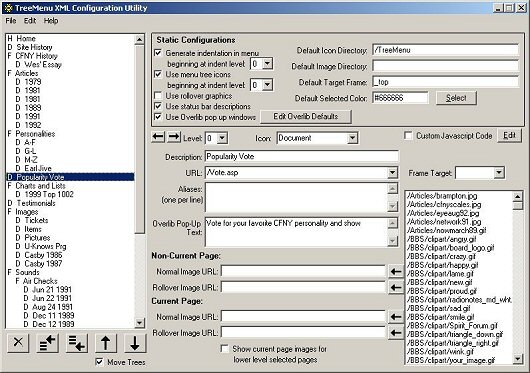

The first thing you will notice is the Static Configurations box at the top
right of the screen. This allows you to set parameters to apply to your menu
without having to do so every time you construct the menu in your ASP code.
Generate indentation in menu: If this box is checked, then
TreeMenu will utilize the standard indentation system as
previous versions always have. When this box is left unchecked, TreeMenu will still function normally, but it does not use any
indentation - all menu items will be flush left. This is useful if
you are going to be using graphics rather than textual representations of
your menus. If "Use menu tree icons" is selected, this option is
disabled and selected, as it can not be turned off if icons are being used.
Beginning at indent level: New in TreeMenu 4.2 is the ability to
define at what indentation level the generated indentation will begin. If
this is set at "2" for instance, any menu item at level 0 or 1
will be flush left, and indentation will be generated for any menu items at
levels 2 or above. This can be used when combining graphical and textual
menus. If "Use menu tree icons" is selected, this option is
disabled, and automatically sets itself to the level set for the menu tree
Use menu tree icons: If this box is checked, then
TreeMenu will utilize the standard icon graphics as
previous versions always have. When this box is left unchecked, TreeMenu will still function normally,
showing only the menu options within the tree that you should be able to
see, but it does not use any icon graphics or indentation. This is useful if
you are going to be using graphics rather than textual representations of
your menus. Selecting this option disables the "Generate indentation in
menu" option, which is required when menu tree icons are used.
Beginning at indent level:
New in TreeMenu 4.2 is the ability to define at what indentation level the
generated icons will begin. If this is set at "2" for instance, any
menu item at level 0 or 1 will be flush left, and indentation will be generated
for any menu items at levels 2 or above. This can be used when combining
graphical and textual menus.
Use rollover graphics: If this box is checked, TreeMenu will use
graphic images instead of textual descriptions in the menu display. The
graphic files shown for each menu item are specified in the four "Image
URL" boxes at the bottom of the screen. Simply specifying the same
image filename in all four boxes will cause TreeMenu to show a single
graphic for each menu item with no animated rollover functionality. If this
box is checked and an individual menu item has no "Non-Current Normal
Image URL" specified, TreeMenu will use the standard text description
for that item only.

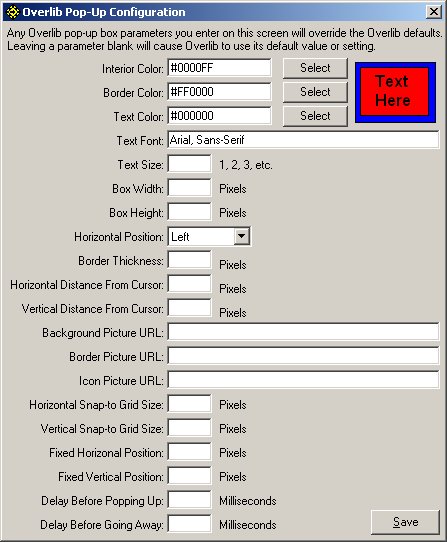

Use Overlib pop up windows: TreeMenu version 2 introduced the
support for the public-domain Overlib
pop-up window library. This library is included in the TreeMenu distribution
- you may wish to check the web site for an updated version. If this box is
Overlib pop-up windows.
Use status bar descriptions:
to make the Description text for each menu item appear in the bottom of the
web browser frame.
Default Icon Directory:
In previous versions, the default image directory (where TreeMenu icon
graphics were stored) was set in ASP code. This can now be set once in the XML
configuration file, so that it does not have to be set repeatedly in the ASP
code. It should be an absolute URL, rather than a relative URL, i.e. it should
start with a forward slash and describe exactly where the files exist.
Directory: When using Rollover graphics, the default directory where these
graphics are stored can be specified here. It should be an absolute URL, rather than a relative URL, i.e. it should
start with a forward slash and describe exactly where the files exist.
Default Target Frame: If
you are using TreeMenu in a framed web site, you can set the default frame in
which you wish selected pages to be opened. This should be the frame name,
i.e. "MainFrame". Frame default names such as "_self" are
Default Selected Color:
If you are using the textual (non-graphic) option, the currently selected page
can show up in a different color than the regular text color. You can specify
the color here, in proper HTML form (i.e. #FF00FF)
To the left of the page is the menu tree listing box, within which is a text
representation of the menu tree being edited. The letter preceding the
description indicates the icon used:
H - Home
F - Folder
D - Document
Next to the letter is the description of the page. For readability, it is a
good idea to use the description field even if you are having TreeMenu generate
a graphics-only menu. To select the menu item you wish to modify or create,
click on it in the menu tree listing box. Underneath the menu tree listing box
are the menu modification buttons:
Delete the currently selected menu item from the menu tree
Insert a new menu item above the currently selected menu item
Insert a new menu item below the currently selected menu item
Move the currently selected menu item or tree up
Move the currently selected menu item or tree down
Underneath the menu item up/down buttons is the option "Move
Trees." When selected, clicking a menu item up or down button will move the
entire tree (the currently selected menu item and every menu item with a lower
level) rather than an individual menu item. This is useful for moving entire
trees up and down within the menu structure without having to move each tree
When a menu item is currently selected, its values appear in the fields to
the right of the menu tree listing box:
Level: This is the indentation level of the menu item. Level 0
causes the menu item to be a top-level item, which is shown at all times.
Level 1 causes the menu item to be a second-level item, which is shown only
when its parent (Level 0) menu item is open. Level 2 items are shown when
their parent Level 1 items are open, and so on. If you wish, you can
use the Icon level buttons
individual items up and down a level.
Icon: This is the name of the icon you wish to display for the menu
item. The three defaults are Home, Folder and Document. If you have created
icons you wish to use, you can type the name of the icon here instead of
selecting a default icon. When typing your custom icon name, type only the
filename, excluding the ".gif" portion (all icons are assumed to
be in the .gif format).
Description: This is the description of the menu item. It is shown
in the menu tree listing box, and if the menu being generated is a
non-graphical menu, it is shown next to the icon for the user to click on.
If the Status Bar Descriptions option is selected, it is also shown in the
bottom of the web browser frame.
URL: This is the address of the page that the user will be taken to
if he or she clicks on this menu option. It can be absolute, relative, or
can point to a different web site altogether. It functions as a normal web
page link would.
Aliases: Any URL entered in this box will be identified as this
menu entry. For instance, if we put "testing.html" in this box,
and we visit the "testing.html" page, TreeMenu will open this menu
entry as if it were the selected entry. Unlimited multiple aliases can be
specified for each menu entry, one per line. This could be used in a
situation where you have a "Funny Jokes" page. You don't want to
have an entry on the TreeMenu system for every funny joke in the system, so
you could list each of the joke URLs in the Alias box instead. This would
cause the "Funny Jokes" entry to be selected when any of the joke
URLs were opened in the browser. New in version 4.2 is the ability to use
wildcards - instead of listing every joke URL, you could put all jokes in a
"/jokes" directory, and insert the following alias:
Frame Target: If this is left blank, the menu item target page will
be opened in the "Default Target" target frame. If the
"Default Target" field is left blank, TreeMenu will default to
opening the page in the current browser page. If you are not using frames in
your site, both this field and the "Default Target" field should
be left blank. The only exception to this is if you wish a link to open a
new browser instance, in which case you would select "_blank" in
this field for that menu item. The defaults already available in this field
_self - Same frame as the TreeMenu generated menu
_top - Whole page, ignoring frame restrictions
_blank - New browser instance
_parent - Parent frame of the TreeMenu generated menu frame
Overlib Pop-Up Text: This is the text that will be contained within
the pop-up window when the user's mouse cursor hovers over this menu item.
It can contain instructions, details, or any other text you want the user to
see when he or she is contemplating selecting this menu item. This text is
only used if the "Use Overlib Pop-Up windows" option is selected.
The next four fields are used if the "Use Rollover Graphics" menu
item is selected.
NormStdImageUrl: This is the relative URL of the image shown when the page is not the currently shown page and
the mouse cursor is not over top of the image. If this is left
blank for an individual menu item, then TreeMenu will use the regular text
NormRollImageUrl: This is the relative URL of the image shown when the page is not the currently shown page and
the mouse cursor is over top of the image.
NormStdImageUrl: This is the relative URL of the image shown when the page is the currently shown page and the
mouse cursor is not over top of the image.
NormRollImageUrl: This is the relative URL of the image shown when the page is the currently shown page and the
mouse cursor is over top of the image.
The images can be the same -
for instance, you may wish to make no distinction between whether or not the
page is currently selected or not. In this case, the values for NormStdImageUrl
would be the same, and the values for NormRollImageUrl
would be the same. Similarly, you may wish to use images rather than text,
but to not use any rollover functionality at all. In this case you would
still turn "Use Rollover Graphics" on, but all four ImageURL values would point to the
If you are editing your TMU file from within FrontPage, you can use a new
feature to quickly select the images to use in your rollover image setup.

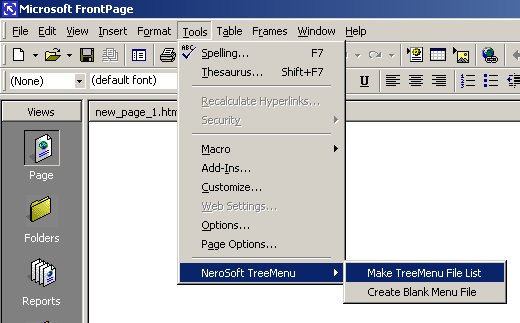

Before double-clicking on your TMU file inside your FrontPage web, select Tools,
TreeMenu, and Make TreeMenu File List:
Once this has completed, then open your TMU file by double-clicking on it
within FrontPage. The TreeMenu configuration utility will launch, and the
image list window will be populated with all available images. To move an
image into the appropriate rollover image box, select the image in the list,
and simply click on the
button next to the box.
When you have finished creating or editing your menu tree, be sure to
save your file by selecting File/Save. Changes you make to the XML format TMU file are
not saved until you select File/Save. If working from within a FrontPage
web, make sure you close the TreeMenu configuration utility before
working on other files from within FrontPage.
In previous versions of TreeMenu, creating a blank TMU file and importing
it into a FrontPage web was a bit of a hassle. Now it can be done quickly from

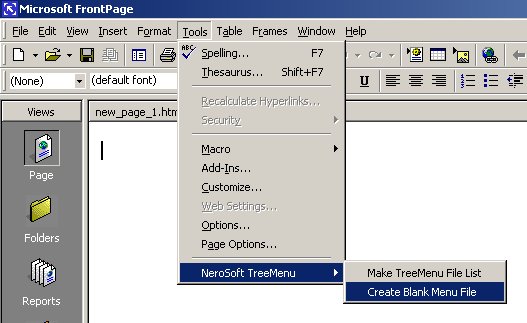

within the FrontPage menu. Select Tools, TreeMenu, and Create
Blank Menu File. That's It!
One of the most powerful new features of TreeMenu 4.2 is the ability to
This allows you to extend the functionality of your menus far beyond what was
capable with previous versions.
indicator. This indicator will appear checked when there is custom code

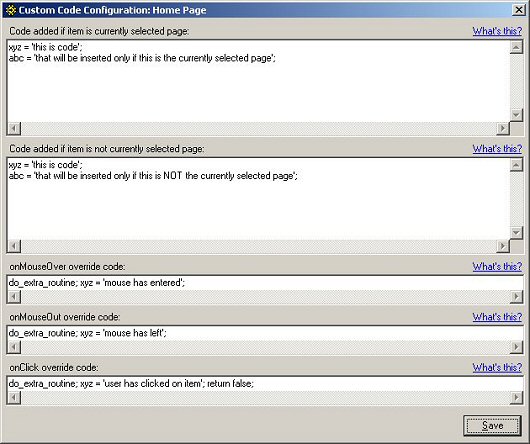

associated with the currently viewed page. When the "Edit" button is
clicked, the following screen will appear:
specified here will be inserted into the beginning of the generated TreeMenu
HTML code, before any menu handling code, only if the page associated
with this code (listed in the heading) is the current page.
code specified here will be inserted into the beginning of the generated
TreeMenu HTML code, before any menu handling code, only if the page
associated with this code (listed in the heading) is NOT the current page.
If the same code is specified in both of the above fields, then it will be
inserted into EVERY menu generated for the site, regardless of the current
into a web site that instantly updates on every page when the associated TMU
file is changed. Note that in this case, it should be entered into only one
page - i.e. the first page.
inserted into the onMouseOver event associated with that page. If you are
code will be appended to the OverLib generated code. This is a simple way to
make other things on your web pages happen when the mouse moves over certain
inserted into the onMouseOut event associated with that page. If you are using
be appended to the OverLib generated code. This is a simple way to make other
things on your web pages happen when the mouse moves over certain menu items.
TreeMenu will create a onClick event associated with that page, and insert
this code into that event. OverLib does not use onClick events, so if you are
not using OverLib and no code is specified here, then code to handle an
onClick event will not be created. This is a simple way to make other things
on your web pages happen when the mouse moves over certain menu items.
Important: The code specified in the page above will be inserted
you enter into this form, those errors will appear on your web page. Ensure
you end your lines and commands with a semicolon!
Important: When saving data to a database rather than a TMU file,
keep in mind you are limited to 7500 characters of data for the XML block
and are saving the menu configuration to a database, you need to ensure it
will be contained within the space limit. An error will occur during saving to
the database if the configuration does not fit within the space restriction.
Previous versions of TreeMenu used flat text files to store configuration
information. These were complex to edit, were not extensible, and made the
implementation of new features very difficult, while retaining compatibility
with previous versions. TreeMenu 4.0 introduced XML format configuration files
which are fully extensible and structured. You can look at the format of the
generated TMU file by renaming the extension from TMU to XML, and opening it from within Internet Explorer. It
will be opened in your web browser, and you will be able to see for yourself
the new structure of the file.
However, existing web sites still use the old flat text configuration file.
For this reason, a conversion utility was included in the new XML configuration
utility. To access it, select File/Convert Old Configuration File from the
configuration utility menu.
You will be able to browse to find the file you wish to convert. Once you
have selected the file to convert, click the Convert button to begin. The
new XML file will be written out using the same filename, only with a .TMU
extension. You will then be able to load this new XML formatted file into the configuration
utility to make any modifications you wish.
Don't forget that your ASP files will now need to point the new version of
TreeMenu to the new XML format TMU configuration file rather than the old text file!
TreeMenu 4.0 and above will not work with the old text configuration file.
TreeMenu has the ability to use the public-domain Overlib,
which produces the pop-up cursor windows that appear when the mouse cursor moves
over items in the menu, as demonstrated on this site. Version 3.10 of the
Overlib code is included in this version of TreeMenu, as "overlib.js".
In order for the Overlib pop-up code to work properly, it is imperative
that you follow these instructions:
Copy the overlib.js file into your web site.
Add these lines just above the TreeMenu insertion code on each page that
Replace the "/JScript/overlib.js"
with the actual absolute path to the overlib.js
file that you copied to the web in step 1. In this case, the overlib.js
file exists in a directory called "JScript".
The TreeMenu Configuration utility has the ability to generate Overlib-specific
configuration code that allows you to specify exactly how you wish your pop-up
windows to appear. This allows you to utilize such advanced features as
background images, borders and other advanced options simply by filling in a few
fields. To access the Overlib Pop-Up configuration screen, select Edit/Edit
Overlib Pop-Up Properties from the main configuration utility menu.
Letting your mouse cursor hover over each field will cause a pop-up to come
up and descript just what the field's purpose is. Leaving the field blank causes
Overlib to use its default value. The Picture URL values should be absolute
values (i.e. they start with a "/"). The text box to the right of the
color selection buttons shows a sample of what the box will look like with the
colors that are selected. If you require more information on just how the
various parameters operate, you should refer to the Overlib documentation
TreeMenu 4.3 introduced the capability to store menu information in a
database as well as in the standard TMU files. Before attempting to use the
database functionality, it is imperative that both the PC running the
configuration utility and the PC running the web server/TreeMenu
component have at minimum version 2.62 of Microsoft Data Access Components installed.
These components can be downloaded for free from the Microsoft site: http://www.microsoft.com/data/download_26sp2.htm
TreeMenu knows how to connect to the database through use of an ADO
connection string. Some example connection strings are shown below. Replace
"ServerName" with the name of your server, "UserName" with your login name, "Password" with your password, and "DatabaseName" with the name of the database holding the tables you wish to access.
To access the database from within the configuration utility, select File/Load
From Database or File/Save To Database from the main menu. You will
be presented with the database interaction screen:
Enter the ADO connection string in the box provided. The ? button
displays the required formats for the string.
The table name will be the name of the table you created to hold the menu.
Once you have entered the table name and moved the focus away from that field,
or if you click the "Update Menu List" button, the utility will
connect to the database and populate the "Menu Name" box with all of
the currently stored menus. Multiple menus can be stored within a single
table, distinguished by their name. You can select one of the menus (Load or
Save) or type in a new menu name (Save). Clicking the Load/Save button will
then read the menu from the database (Load) or write the menu to the database
Utilizing a database menu source rather than a TMU file source from within
the web page itself requires a minor change in coding, and is detailed here.
An unregistered version of TreeMenu will insert a reminder in each menu
generated that you need to register in order to legally use TreeMenu on a
production web site. Developers are welcome to run unregistered versions of
TreeMenu on their development machines. To register TreeMenu, run the TreeMenu
Configuration Utility, and select
Help/Register TreeMenu from the main configuration menu. Make sure you do this
on the production machine on which you wish to run the registered copy of
Click the "Click here to visit the online registration page" line to be taken to
the purchase page. It will ask you for your credit card details, and will then issue you a
license key. SAVE
THIS KEY! Type the key into the provided box and click the "Register
License Key" button. It will respond by telling you
that the registration has been completed. You will need to reboot the PC to
allow the TreeMenu web component to read the registration information. From this point forward, TreeMenu will
no longer insert its reminders into any generated menus.
What is this TMU file? I thought the new version of TreeMenu used an XML file
The TMU file is actually an XML file - in
fact, if you rename it with an ".XML" extension, you can then
open it in Internet Explorer or any other XML-compliant application. The
reason it was renamed TMU was to allow TreeMenu to be the default
application for "TMU" files, meaning you can double-click on a
TMU file in Explorer or from within FrontPage, and the TreeMenu
Configuration Utility will automatically start and open the file. If we
had left the file with an ".XML" extension, TreeMenu would have
become the default application for XML files, which may have interfered
with other applications on your PC.
How can I include codes with ampersands (i.e.  ) in my descriptions?
TreeMenu by default translates certain codes (like the hard space or ampersand codes) into their printable versions. Preface the code with a backslash: \ - this will cause TreeMenu to leave the literal code alone.
I upgraded to version 3 of TreeMenu, and now
all my tree icons are gone.
Version 3 of TreeMenu now uses "IconDir"
rather than "ImageDir" to specify the icon directory. "ImageDir"
is used to store the directory holding rollover images.
If I use rollover graphics, do they have to
change? Or can they be static images?
They can be either. If you don't want the
graphic to change when the mouse cursor moves over them, simply specify
the same file in all four boxes.
Can I use both text and graphic menu items in
the same menu?
Yes. Simply specify graphic images for those
items you want to have as graphics, and leave the graphic file boxes blank
for those items you want to show as text. TreeMenu will use the text
Description for those items.
Do I have to pay for TreeMenu if I just have
it on my own PC to write web pages with?
There is no charge to have TreeMenu loaded and
used on individual developer workstations. It must be registered in order
for it to run on a web server. Once it is loaded onto a web server and
registered, it will be available at no further cost for every web
site running on that server.
When I view a web page created by TreeMenu, I
get tons of "Object Not Found" errors popping up when I move my
99% of the time this is caused by forgetting
to put the Script statement in your ASP code, which includes the Overlib.js file. See
details on doing this in the Overlib section.
Can I have more than one menu entry pointing
to the same page?
Not normally. There is one way around this if
you are using ASP pages, and are not passing parameters using POST. If the
page you want to point to is pagenam.asp, set one menu entry pointing to
pagenam.asp?1 the next to pagenam.asp?2 and so on. The ? delimits the page
URL from data being passed to the page. In this case the page ignores the
data being passed, and the fact that each URL is different allows you to
discern between them from within TreeMenu.
Can I have more than one page pointing
to the same menu entry?
Yes. Simply enter the URL's of the pages you
wish to include in the "Aliases" box in the configuration
When I try to use TreeMenu, instead of a menu,
I get this message:
Server Application Error
The server has encountered an error while loading an application during the processing of your request. Please refer to the event log for more detail information. Please contact the server administrator for assistance.
You need to check two things on the server.
Open the IIS administration panel, select the domain properties, and click
on the "Home Page" option. Ensure that there is an application
associated with the domain has been created. If there is no application
created, click on the "Create" button.
If this does not solve the problem, or if there is already an
application associated with the domain, check the Application Protection.
Depending on your server configuration, this may need to be set to
"Medium (Pooled)" or "Low (IIS Process)".
TreeMenu works only when set to "Medium (Pooled)". When set to "Low
Process)" it tells me that
the navigation file is invalid or missing. (see above question)
For security reasons, it is highly recommended
that the security level be left at the default (Medium - Pooled). Changing
it to Low means that any third-party application (such as TreeMenu) runs
within the IIS process. Should there ever be a problem with the process,
it can cause the entire web server to fail, for every domain it is
serving. Leaving it at the default separates these processes from the main
IIS process, protecting the web server from errant third-party
applications. However, depending on your security configuration, you may
see the error message mentioned above. This is normally due to the fact
that the web application user (IWAM_MACHINE, where MACHINE is the name of
the PC) does not have permissions to read the web site, specifically the
configuration file and the directory holding it. There are two methods to
fix this problem:
Move the TMU file to a directory outside of the web structure, such
as "C:\TMUFiles". Make sure the web application user has
read privileges on the directory by using this command:
C:\> cacls c:\tmufiles /t /e
Replace the "iwam_machine" with the proper username for your server.
The ASP code calling TreeMenu can then reference the "C:\tmufiles"
directory directly, instead of mapping the web directory using the
Give the web application
user read privileges on the directory and files containing the TMU file.
This can be done simply using the this command:
Replace the "dirname" path with the proper directory for the domain,
and replace the "iwam_machine" with the proper username for your
Instead of a menu, I get the following error: There is a problem with the registration of the TreeMenu component on this server. Have you run the TreeMenu Configuration utility on the server at least once after the installation of TreeMenu? Have you rebooted since registering?
Make sure you have done as it says - run the
TreeMenu Configuration utility at least once on the server that is running
TreeMenu, while logged in as a user with administrative privileges. If
this does not solve it, reboot the server. If this does not solve it,
check that the web site Application Protection is set to "Medium
Open the IIS administration panel, select the domain properties, and click
on the "Home Page" option.
Depending on your server configuration, this may need to be set to
"Medium (Pooled)" or "High (Isolated)".
